Tuesday, September 5, 2023

Xilinx ISE 14.7 - USB Programmer in 2023

Don't even bother trying to compile the drivers coming with ISE. It won't work and is a waste of time.

This guy has provided a solution with an open source driver which is still usable in 2023.

Prerequisites:

sudo apt-get install fxload

Assuming you have your Xilinx installation in /opt/Xilinx:

cd /opt/Xilinx
git clone git://git.zerfleddert.de/usb-driver
cd usb-driver
make
./setup_pcusb /opt/Xilinx/14.7/ISE_DS/ISE/

After replugging the USB adapter, the kernel log should indicate the firmware loading process.

[13491.418666] usb 1-3: new high-speed USB device number 10 using xhci_hcd
[13491.652881] usb 1-3: New USB device found, idVendor=03fd, idProduct=000d, bcdDevice= 0.00
[13491.652886] usb 1-3: New USB device strings: Mfr=0, Product=0, SerialNumber=0
[13492.045004] usb 1-3: USB disconnect, device number 10
[13493.898621] usb 1-3: new full-speed USB device number 11 using xhci_hcd
[13494.197962] usb 1-3: not running at top speed; connect to a high speed hub
[13494.212981] usb 1-3: New USB device found, idVendor=03fd, idProduct=0008, bcdDevice= 0.00
[13494.212984] usb 1-3: New USB device strings: Mfr=1, Product=2, SerialNumber=0
[13494.212985] usb 1-3: Product: XILINX


And then when you want to start impact, a custom libusb must be provided:

LD_PRELOAD=/opt/Xilinx/usb-driver/libusb-driver.so impact

I had great success with an old xc3s50an

Sunday, February 19, 2023

STM32-USBFloppyTracer - Successor to the SlamySTM32Floppy

The Learning of Rust

During the last months I was rather busy with another project. On 21.08.2022 I've decided to finally start learning Rust, as I wanted to learn more about the powers it possesses. As a professional C++ developer I've noticed certain flaws of the way C handles concurrency. It doesn't matter if it is a Linux daemon with threads or an embedded project with interrupts. Concurrency can lead to stochastic bugs difficult to pin down. Rust doesn't have this issue as the compiler itself makes use of formal verification to ensure that no data structures are shared globally without mutual exclusive protection.

tl;dr Rust is very safe.

I wanted to learn that language and needed a project to do so.

The Project

My SlamySTM32Floppy project was now finished for a long time. But I wasn't happy anymore with its state. The code is messy and copy protected images were never fully verified after being written. Also new projects have entered the game by now. There is the Greaseweazle and also the KryoFlux. If it wasn't for my desire to cleanup my old project and my love for old technology I would have just bought a Greaseweazle. It is open source and prebuilt hardware is not very expensive.

As I had the old hardware lying around I decided to just go with it and start the firmware and the host tools from scratch. Also my solution never had any housing. A fine remainder:


This was the state during 2016 and it was still like this in my closet by now. That was about to change.

The goal

  • Yet another USB floppy flux thing project because there wasn't one before. lol.
  • Writing of copy protected images as correct as possible
    • Make use of write precompensation this time
  • Verification of all written data to the level of a single flux reversal
  • Writing of images as fast as possible. No rotation of the disk shall be wasted.
  • Have some integration tests to check for regressions during development
    • Adding features can break previous accomplishments easily
  • Have a proper documentation about its usage
  • Utilize DMA this time for better performance
  • USB communication is not stalled during flux operations

A different approach to write flux data

The way the Greaseweazle approaches its task is vastly superior to my old technique. The SlamySTM32Floppy used code in its firmware for very specific tasks. GCR and MFM are handled by different functions. DMA was not used to write and collect pulses. Verification of written data was performed by parsing known track formats. There was a verify function for Amiga sectors and for ISO sectors. The code is open source and can be used to learn from my old mistakes.

The Greaseweazle on the other hand has a very basic firmware with only one task to solve: The correct writing of raw fluxes and reading of those. This keeps the firmware simple as all intelligence is on the host side. This however means that more data needs to be transferred between STM32 and PC. But I've decided to go with this approach as well as it seems to be very flexible.

A different approach to verify written flux data

However I was not happy with the way, the Greaseweazle verifies the written tracks. A whole track is read back to the PC and then cross correlation is performed to check the equality of any possible flux stream. I like this idea but I wanted to do the verification on the firmware itself. My goal here is different. As before, this project is targeted to be optimized for writing speed, so this simply won't do. Instead I needed an algorithm for cross correlation which is performed on the device while the just written track is read back from disk.

The idea of the Greaseweazle with cross correlation was good, but it needed to be scaled down. By the time of writing I went with reading the first 200 flux pulses after the index signal and cross correlating them against the first 20 pulses of the groundtruth data. As soon as both match up both flux streams are considered in sync and are compared until no groundtruth data is left to compare against.

200 flux pulses might sound like a lot, but it had to be as this floppy writer is capable of working without the index pulse to support flipped 5.25" disks. The larger amount of data allows more room for fluctuation in the rotation of the disk.

Usage of write precompensation

Early on, I've never thought about write precompensation but it really improves the quality of the written data. For more information, I've written a markdown file about this topic in the github repo. This must be performed for every drive and can be essential for games like the Amiga version of Turrican II.

A smaller board

Originally this project was started using the STM32F4DISCOVERY. This eval board still performs well today but it's size makes it difficult to fit into a case. I've decided use a smaller one this time: A board without microphone, a headphone amplifier, an acceleration sensor and an integrated stlink.

The Diymore STM32F4 seemed to be the right choice. It is exactly the same microcontroller - the STM32F407 - but reduced to the essentials. All this project needs, is I/O and a USB port.

In the end, I've wasted space nonetheless as the used perfboard could've been smaller.

But still look for yourself:

A much smaller board with only the relevant components

A case made from wood to properly store the electronics

This time I wanted to have a small case to store everything. It is much easier for transportation that way and the especially naked 5.25" drive is protected.
At first I thought about 3D printing (thx to Chris for support) but wasn't satisfied with the result. It seems that 3D printed models are difficult to rework in case the designed 3D model was not thoughtfully planned to the end. (Yes, cables take up space. Especially thick cables like the one used for floppy drives...)
So I've decided to go for wood instead. It makes reproduction for others more difficult but in the end it would be possible to make a 3D model from it as soon as I was satisfied with how the case was built. A wooden model can be reworked very easily.
Early state of the case viewed from the top. Some rails added for the drives to sit on

Viewed from the front

And the back.

Small piece of wood to keep the PicoPSU in place

Connected the PicoPSU to the small piece of wood

The case and the top piece

The whole case fitted together. A view inside.


A 3.5" drive and the Diymore board

The PicoPSU added

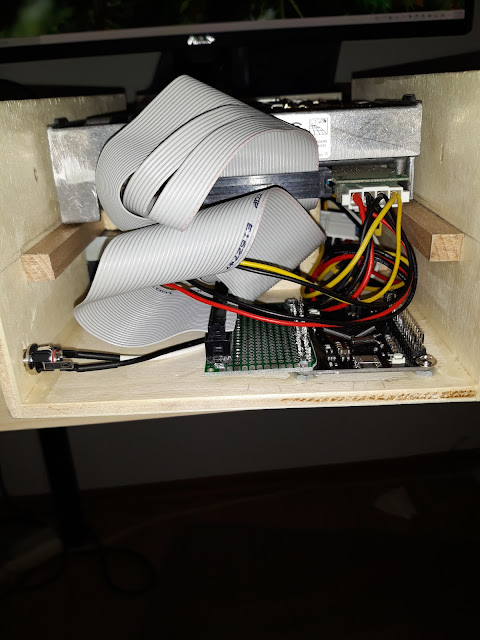

The floppy cable added.

The finished product.

The Result

The project goal was achieved. I did learn a lot about the Rust programming language through practical usage and learning from problems during development. I've learned about development of linux system software as well as embedded development using that language.

In the end, the resulting device is very similar to the old SlamySTM32Floppy but surely more advanced. Especially the verification of every written track, even copy protected ones, makes the resulting disk more trustworthy.

The knowledge about more sophisticated things like write precompensation was also expanded.

This project is open source from the start and can be inspected on github.

I've also decided to maintain a list of correctly written images so compatibility is properly documented.



Tuesday, December 20, 2022

MiSTer FPGA Direct Video - HDMI to VGA adapters

This is a message to the MiSTer FPGA users out there living in Germany that are trying to find a working HDMI to VGA adapter for the Direct Video mode.





It seems there is not a lot information about compatible devices to find. I would like to share that I got these two today (for science) from the local MediaMarkt. I can confirm that both are working with my MiSTer and my 1084 monitor.

You can also buy them online:

https://www.mediamarkt.de/de/product/_hama-hdmi%E2%84%A2-stecker-auf-vga-buchse-2708216.html

https://www.mediamarkt.de/de/product/_isy-iad-1007-hdmi-adapter-2737565.html



Cheers

Sunday, September 19, 2021

Playing Snailiad on Debian Linux in 2021

Flash is dead. It's still a bummer that Adobe hasn't just released the source code for public maintenance.
There are still some flash games around which should be preserved for future generations. Snailiad is one of them.

I've joined the official discord server of Snailiad to check for the currently accepted way of playing it. It turns out that newer versions of Flash are playing Snailiad at a wrong speed and the recommended way is using Flash 11.3 for it.

The old Flash binaries can be grabbed on archive.org.
Disclaimer: Download this program at your own risk. It's an old preserved linux binary and I can't assure its authenticity!
Please check the md5sum before installing: 11b83aafdd4de9b64590b2ed43c6cb08
https://archive.org/download/standaloneflashplayers/fp/fp_11/11.2.202.644/

As this is a 32 bit application, some libs need to be installed in their 32 bit version.
sudo apt-get install libxt6:i386 libgtk2.0-0:i386 libasound2-plugins:i386
Then you should be fine with:
./flashplayer Snailiad.swf
Happy Snailing around!

Tuesday, March 16, 2021

100% disk usage on SSD and system freezes on Windows 10

I'm no ordinary Windows user. I boot the system, I play some Doom Eternal, play some VR and then I'm rebooting to Linux.
When I bought my current PC last year in March I haven't noticed it really but everytime I install something, my computer freezed. Not even Discord is reacting on keystrokes. It's weird and only occured under Windows.

At the moment I'm booting Windows more often as I'm playing around with development for VR and my headset is not supported on Linux. (Not a lot are anyway...)

And it keeped getting onto my nerves so I investigated with procexp64.exe and the task manager. The disk usage of my system was pretty much always at 100% during the freezes. But why is the I/O that high If no actual data is requested?

TL;DR

Then I finally found the solution here. It turned out that the Microsoft driver StorAHCI.sys has an issue with some SATA controllers if MSI is enabled. It can be disabled with regedit.

If you suffer from the same issue, maybe the provided link will also help you. I'm writing these lines to increase the odds that the next stranger will find this faster than me.


Thursday, January 28, 2021

How to play Half Life: Alyx with an HP Reverb G2 and an RTX 2070 Super - My story

Why all this?

It feels kinda awkward to write this. I mean... duh... you just buy an VR Headset, buy the game and play it. It runs on Windows so how difficult can it be?

I had no idea and this is my story.

Until 2020 I didn't had lots of experience with VR. Back when the Oculus Rift DK2 was available I borrowed it from a friend and played some Minecrift (The spelling is correct) with it. It was a mod to make the Java Edition usable with this particular VR headset. It was the early age when Motion controlls were not availabe. It was a horrible experience. I felt sick after it and the view inside was like looking through a screen door as the pixels had some distance in between. I also played a Half Life 2 mod but it looked worse than Minecraft as all textures were washed out. The resolution of the headset was just not high enough.

Then it went quiet for me concerning VR. Someday a friend showed me his PSVR for his PS4. I didn't like it as well. The resolution was again not high enough. The games were boring and uninspired. At least that's what I thought at that time.

In August 2020 I've visited a friend during a vacation and he showed me his Oculus Quest. The time has passed and so did the technology. Motion Controls are now the norm and more creative games were available. For the first time I've played Beat Saber and I loved it. We also played "Keep talking and nobody explodes" together and as we both are quite Retro when it comes to gaming, he also showed me the VirtualBoy emulator VirtualBoyGo. It was a nice experience and I wanted more. His brother owned the Valve Index and was so kind to let me compare it to the Quest. I could play Beat Saber as well. At the time I was overwhelmed so I didn't noticed much resolution difference. Everthing was new: Inside Out Tracking? Lighthouses? Knuckles with Fingertracking? Guardians?

At that day I knew that I wanted this as well. VR has matured into a state I believed I could now have fun with. And so it started.

What Headset to get?

During the time I've made the decision to get into VR, there were quite some options for headsets to buy. I wanted to go for PC VR as I just bought a new PC and wanted to have the best graphics for my VR experience. Also I really wanted to play Half Life: Alyx which was already known as one of the first AAA VR games. So it was either the Valve Index, or the just announced HP Reverb G2, which was advertised as having a higher resolution and therefore being less prone to the - so called - screen door effect. Some YouTubers already got hold of some early samples and made in-lense videos to show the resolution differences between Oculus Rift S, Valve Index and the HP Reverb G2. I was hooked onto the G2, even so this meant that I had to wait some weeks until I can get my hands on one of them. But that was ok. No need to rush. I've already missed like 4 years of VR and some weeks wouldn't hurt.

Waiting times for the Headset to arrive...

November came, no G2.... issues with the shipment.

December came, no G2.... a little bit of frustration.

On the 21.12.2020, just before Christmas, the package arrived. So by accident I've just made myself a present for the holiday season. Luckily, one day after that I even got my lenses from VROptiker. I was ready!

I even started Windows after half a year as it was booted to play Doom Eternal when it came out.
Yes, I'm a Linux user....

So, I plugged it in and after some Windows updates and installation routines of the Windows Mixed Reality portal I got this:

Error Code 7-14, indicating an USB 3.0 issue


Huh. Whats, this? Omg. Please don't tell me that the Headset is broken. That would be awful.

I searched about this 7-14 error code on the internet and it turned out that a lot of people have this issue. It was related to bad USB 3.0 ports on AM4 socket AMD boards. With my B450 I'm also into the party. What could I do? Would my VR experience end here? Just days before christmas?

At that time I've stumbled onto quite some websites. I've found the german website vr-legion, which gave some tips and tricks about this issue. I gave it a shot and bought the USB 3.0 Vivanco USB Hub 36663 at a local electronics store. It was Corona time but I was lucky that I could order online and grab it at the store.

Back home I was full of hope. I've connected the USB hub and there we go. The headset worked and I was standing at the Cliffhouse of Windows Mixed Reality. I even was able to play some Beat Saber.

But something was off. The tracking stuttered and sometimes the Audio was gone and came back. I could hear from my monitor that the USB plug-in and plug-out sounds were played. Sometimes the view in my headset stopped and locked me in place, even so I was moving in reality. Sometimes the view rotated 180° and I could see like I had eyes on my back. It was an awful experience.

I've then ordered the vr-legion suggested USB 3.0 PCIe card from Inateck. But it had the same issue as the Hub. A friend and neighbor was so kind and bought a second hand Inateck card one day before christmas so I won't be so sad about it. It was an older Inateck card which I couldn't find online any more. But it had the same issues. Both Inateck cards had in common that they used the Fresco chipsets for USB3.0 implementation. They don't seem to be so realiable for VR.

Was the headset really broken then? I've searched online and found the german Youtuber Zitronenarzt VR wo had similar issues as well. After Christmas was over, I didn't really knew what to do. My neighbor suggested to get a PCIe USB 3.0 card from CSL which is supposed to use an NEC chipset. This chipset was one of the two which were also suggested by Zitronenarzt. I got it again second hand from a former Oculus Rift player, a headset which shares these USB issues as well. And? It worked! The audio dropouts were gone and also the full tracking losses were a thing of the past.

One note though. It has a Renesas chipset. Not NEC. But it works as well.

CSL PCIe USB 3.0 Card with a Renesas Chipset, which was more reliable

Tracking Stutter issues, glitches in the flashlight

So what to do now? Playing some Beat Saber was the best option. And also buying and downloading Half Life: Alyx. During that time, a christmas steam sale was still active and I also went for Superhot VR and Moss, so I had some VR titles to play.

Beat Saber worked quite well. Quite some fast paced action. I've played the Campaign to get into it. Parallel to that I've also started to play Half Life: Alyx (now shortened to HL:A) as I really loved Half Life 2 and thought this must be the best experience to get with current VR technology.

The game itself worked kinda sorta. But something was still off. I could see it in the Cliff house. I could see it in the Menu of Beat Saber. And I could see it in HL:A all the time while standing still. My head tracking had stutter issues. It was very subtle but it was always there. It was almost like the tracking was one frame behind my real movement. It's difficult to describe.

I've searched online about this but couldn't find answers. I've contacted the HP customer support but they weren't able to reproduce the issue. At that time I've also experienced that the image shown by my flashlights (Microsoft's name for looking through the headsets inside-out tracking cameras) had some pixel issues now and then. I really thought that this was the culprit of the stutter and told the support that. But they never answered this one question.

At that time I've thought that the situation improves when pressing the headset against my head. But boy, was I wrong. That only reduced the symptoms.

Windows 20H2

As you might know by now, I'm a full blooded linux user. I only boot Windows when I really need it. My current Windows 10 was build 1909. I always wondered why the settings menu of the Mixed Reality portal looked different on pictures I've found online. I also didn't knew that an update to 20H2 must be manually activated. Previously I just grabbed the normal updates and thought this was enough. And so I updated to 20H2.

Did it fix the issue? I don't know anymore. Maybe it did and you should update as well.

The Nvidia driver 446.14

I don't know how I got this information in the first place, but I've notived an ongoing discussion about Nvidia drivers and VR compatiblity. It was on various forums, reddit and also the offical support forum of Nvidia. With a certain Nvidia driver, frame drops seem to occur more likely in VR.

As a user of a RTX 2070 I was still able to downgrade. And so I did and it improved my experience. The Beat Saber menu no longer stuttered and also standing still I seem to have no issues any more.

I've played a few days and enjoyed HL:A while still being contact with the HP support.

Half Life: Alyx - Chapter 5: Northern Star

The first chapters were a blast to play. I liked the concept to have an option on how I would like to move in the game. As a VR newcomer I went for the "blink teleport": I point somewhere and by letting go the left stick, I teleport to that location. It was the same concept which is also used in the Mixed Reality Cliffhouse and SteamVR home as it reduces motion sickness. Everything was fine until chapter 5 of the game and then it went down again.

Everytime I used the teleport, the game dropped 8 frames. Extreme motion stutter was the result. So I've contacted the Steam support about this issue. Sadly they couldn't help me as this issue seems to be unknown to them.

The Nvidia hotfix driver 461.33

At this time I gave up on HL:A for a moment and started to play Superhot VR. The game worked without any flaws (apart from the stuttery menu room) and again was blast to play.
I've also observed the support forum of Nvidia about the stutter issue and suddenly it happened: On 20.01.2021 a hotfix was released. It didn't really took off for me at first. Beat Saber started to stutter and also HL:A stuttered extremly. But the 8 frame drops were gone and replaced by exactly 1 which was then filtered out by the motion reprojection of Windows Mixed Reality.

Tweaking Half Life: Alyx Launch Options

I've experimented a bit and also searched further about performance issues with HL:A. One of the sources which helped me with this issue was this website. It helped me to understand the dynamic scaling system of HL:A which was very important for the next part of the fix. I can also recommed reading this article about the differend fidelity levels and debug mode for better investigation.

With this knowledge I've applied these launch options:

-console -vconsole -novid -nowindow +vr_perf_hud 1

-console -vconsole allows to open the console by pressing ~ on an english keyboard layout. Might come in handy (It doesn't work with a germany keyboard layout)

-novid removes the Valve intro. For faster testing of settings.

-nowindow removes the spectator mirror window and increases performance.

+vr_perf_hud 1 activates a visualization of the dynamic scaling head room analysis. (say that 3 times fast)

You can read more about this visualization here. While doing so, I've noticed that my HL:A instance only has 4 levels of details to choose from while usually there should be 8. I was confused. But nontheless I've found a kinda sorta working solution.

I've decreased the application specific super sampling to about 50% which is then multiplicated with 76% which is my automatic super sampling setting of SteamVR and there I had a kinda sorta working solution. But the game didn't really look that sharp anymore. So something was still wrong. In the game itself you are capable of configuring the visual quality: Low, Medium, High, Ultra. The settings didn't had any effect on my performance though.

The last Fix - Don't use Vulcan

I've continued to play the game went for the later chapters. It didn't look really sharp but I still had my fun with it. And a few hours away from the end It kinda hit me.... Vulcan.... Direct X11.....

I remembered that at the start I went for Vulcan instead of DX11, which is the default of HL:A. I switched again to DX11 and.... wow. The 4 levels of detail again turned into 8 and the game looked much sharper. I've continued to play the end of the game and really had a good time with my settings.

I only felt a little bit sad, as it would have been better if I had known all this from the start. In the end I've resolved my issues and hopefully finally can enjoy my VR experiences.

TLDR or Conclusion

So you have performance issues with Half Life: Alyx? Try the following :

  • Apply launch options -console -vconsole -novid -nowindow
  • Reduce Application specific super sampling. Keep in mind that Half Life: Alyx is capable of a scaling factor bigger than 100% when possible. The Steam super sampling is only a reference for the game. It only defines the internal 100% as it seems.
  • Try Vulcan and DX11 and compare both performance wise.
  • Try the new hotfix driver from Nvidia with the version 461.33
  • Deactivate any GPU monitoring (exception is SteamVR performance graph)
  • Deactivate Stopsign VR, fpsVR or any Steam Overlay
  • Decrease Steam Overlay rendering quality to Low (if you really need overlays)
  • You won't see a difference and it performs better.
  • Optional: Deactivate Windows Mixed Reality Motion Reprojection for HL:A
  • Set from "Auto" to "Per Application"
  • Disable Motion Smoothing in Video settings for Application.
  • Launch the game with +vr_perf_hud 1 and observe the selected level of detail.
    • Alter the application specific super sampling according to the headroom.
  • Check the SteamVR performance graph
    • Pink spikes must be avoided on all costs as they are frame drops and cause stutter.
    • Orange should not occur often. It's more ok if Motion Reprojection / Smoothing is enabled.
Something I can't confirm. But maybe it works for you:
  • Deactivate RGB tools.
  • Discord can be a problem (I don't see this)



Sunday, September 20, 2020

The irrational dream of having CRT monitors in 2020

Backstory – In March 2020, Doom Eternal was released to the public.

So what does that have to do with CRT monitors? Let's find out.

Backstory

Back in 2017, I played Doom 2016 and was hooked. It was a great game and felt almost like some sort of UT2004 single player experience because of the fast action and pacing.

When ID Software announced a followup, I was again hyped and looking forward to the release.

During March, it was more and more apparent that my current setup with a GTX 960 and an i5-2500K would not be able to handle the game. The system in question used to be state of the art in 2012, and I didn’t really need a new PC for a long time. All my previous upgrades were triggered by game releases. In 2004, I upgraded to play Half-Life 2. In 2012, I upgraded again to play Starcraft II. So you can say, those games were system sellers for me.

In April 2020, I upgraded to a Ryzen 7 3700X and an RTX 2070 Super to finally play more recent games. But what else do you need for a good gaming experience? A high-quality gaming monitor, of course! The past seven years, I used a 1200p Dell office monitor for gaming. The picture quality for static images was good, the text readable. But for dynamic images, this monitor had quite an awful amount of motion blur.

I was never really an early adopter, and I only ever upgraded my hardware when necessary. In the meantime, gaming monitors had changed. 60 Hz is no longer state of the art, and the need for a 1200p resolution for more lines of text on the screen was no longer a requirement as 1440p and 4K are now mature technologies and I would just need to buy a larger monitor to get the same results.

I ended up buying the ASUS TUF Gaming VG27AQ on Amazon, as the current COVID-19 epidemic didn’t allow me to buy electronics in local stores. I was especially interested in the ELMB-Sync (Extreme Low Motion Blur) feature, as I had hoped that backlight strobing might finally result in a CRT-like experience on TFT monitors. You know, no motion blur?

ELMB-Sync is a specific feature you find only on ASUS monitors (by the time of writing this). It is a Variable Refresh Rate technology coupled with Backlight Strobing. Compared to G-Sync monitors, which can only do either G-Sync or ULMB (Ultra Low Motion Blur), this was advertised as being a step forward.

But it turned out that this monitor sucked at it. I had issues with strobe cross talk for every refresh rate I could think of. I was quite unhappy with the device, and returned it shortly after only 3 days of testing and usage.

A photo of the strobe cross talk test from www.testufo.com on the VG27AQ

As a “videophile”, it’s pretty difficult to buy display devices. Most technologies have advantages and disadvantages to them, and it seems to be impossible to find something which is the best of all aspects. Even so, making the decision to buy the VG27AQ based on reading various reviews seemed to be inadequate. A friend of mine told me not to rely on rtings.com alone and suggested reading articles on sites like tftcentral.co.uk as well. So, the search was still on.

It was on May 16th 2020 when I decided to buy the “least crappy monitor”, as a “best one” was not available, and ended up with the ASUS ROG Swift PG279QE, which is still my monitor as of writing this article. Compared to the ELMB-Sync of the VG27AQ, the ULMB of this monitor was significantly better. The strobe cross talk was weaker, but was still there. The biggest problem was the restriction of refresh rates, as a lot of fantastic games were still limited to 60 Hz. Some examples are Factorio (released in 2020), Freedom Planet, Carrion (also released in 2020) and most emulators for older systems. ULMB could be hacked to allow 60 Hz backlight strobing, but it ended up hurting my eyes and I did not use it.

But in the end, this monitor wasn’t that bad. This was my first monitor with a variable refresh rate, and G-Sync worked fine with Doom Eternal. I played the game and I was happy.

Food for Thought

But after murdering thousands of demons, I felt something was wrong. Is this really how display technologies are supposed to work? Why can’t I scroll in Age of Empires 2 and read the text at the same time? How does everyone just accept this? Am I having mental issues which cause only me to see this motion blur?!

In 2019 and the beginning of 2020, I was rather busy developing an Amiga game which was to be released in March 2020. Tiny Little Slug was finally up for sale after many grueling debugging sessions to fix all the bugs that remained.

I still operate my Amiga on a Commodore 1084 monitor even after all these years. It’s one of those 14" CRTs you just have to love because of the excellent image quality, bright picture, strong contrast and lack of motion blur. While the development was done using an emulator, the final testing of the game was performed on a real machine. Through that, I was exposed to the smooth picture on the CRT. The Commodore 1084 outperformed all recent gaming monitors in terms of motion clarity. 30 years, and TFTs are still playing catch-up.

I tried to remember when and why we all swapped out our PC CRTs. I still remember playing CS 1.6 with friends in my parents’ basement. A LAN party with 6 adolescents. We all had CRTs, except for one friend who used an early-generation TFT. During that time, I had to ask my father every time I needed to move the monitor – it was simply too heavy for me. We still played on LAN parties later, when everyone had switched to TFTs. I also remember playing Half-Life 2 on an early TFT. But what happened? Why did everyone switch from CRT to TFT? Nearly all my memory on that topic is gone. Last I can remember is that those early 1024x768 TFTs were kind of slick, cool, or maybe “new”. It was the new “next thing”, and people liked the “new” stuff?

I‘ve decided to ask other people for their opinion. Co-Workers, friends and family. “Those were quite heavy and the devices were too deep” was the aggregated result about the death of picture tubes.

I personally would never care about the weight or size of something if there is no alternative in terms of quality. I also thought this would count for others as well. So what happened?

Were TFTs that much brighter? Were black levels in room-light conditions that bad? Was convergence a real issue even with high quality monitors? Was the sharpness of the picture not that good?

It seems especially the last question really depends on the used resolution.

I started to grow more into this topic and while I do own 2 Amiga monitors which are display devices for PAL and NTSC 15 kHz video signals, I haven’t used a PC CRT for quite some time. At the end of May this year I used eBay to gather some free CRT monitors for PC usage. The first one, a hp p930, was rather dim and thus not very helpful. Also the flat tube had linearity issues. The second one, a Siemens MCM 1706 (17”), was rather small but offered great brightness and a sharp picture as long as the resolution was not higher than 800x600. The tube could be also driven with up to 1600x1200@70Hz but the picture quality suffered badly. And so I experimented.

3 monitors in a row. 2 TFTs and 1 CRT.
A thing of sluggish beauty. Left to Right: Dell 2412M, Asus PG279QE and Siemens 1706 MCM


When Carrion came out this year I was kinda fascinated that the internal rendering resolution was 640x480 while the frame rate was locked at 60 Hz. At the same time it was scrolling rather fast. This made the game look awful on my very expensive Asus PG279 but looked like a blast with the native resolution on the free 17” Siemens CRT. I was quite happy during that period of time that I had a CRT to play this game.

Games of the post-2003 era

Fast Scrolling Games...

While looking for games which could suit a CRT I noticed that most of the current games don’t scroll very fast. Recent 2D platformers like Hollow Knight or Bloodstained do have a rather slow scrolling pace. Almost like… they were optimized for monitors that are known to have motion blur.

One could say games have changed. Developers have adapted from the quirks a CRT had in the past (horizontal scanlines) to the quirks the current technology has (motion blur).

The Future

Now, 17” is not big measured by current standards. And either the focus unit or the shadow mask of my Siemens 1706 is not suited for higher resolutions. But there were other monitors like the Sony's GDM-FW900.

People seem to crave for this monitor. They want it back. High prices are paid for them. But the issue is that these are old. You don’t really know what to expect with probably aged tubes.

At this point I was wondering. Why is there no movement in bringing CRT monitors back. Are the disadvantages of the past still part of the present? How would the picture look like today?

I dream about a 27” G-Sync compatible CRT monitor with high resolution. But how high could the chance be to revive the machinery to make them? How high would the demand be? How expensive would this dream monitor be?

If I had more courage I would kickstart a new CRT monitor. But who am I? Just an embedded software engineer without any manpower behind. I could probably design the firmware, video processing algorithms, OSD, deflection control and all that stuff that would belong to such a device. But the rest?

Glass, Vacuum, Chemical stuff with Phosphors, Etching of Shadow Masks and analog circuits. Combine that with the complex process of actually getting phosphor dots on the screen.

It’s too complex for one person.

Conclusion

Maybe this dream stays a dream. Maybe I currently have a weird quirky phase. But the state of the art of displays make me angry. Sample & Hold type of displays need to leave the gaming market now and make place for something better suited for moving pictures.

TFTs still have their place. In offices to read text with great font clarity. But for the rest?

OLED monitors are still not available and who knows when they finally arrive and whether they will solve the problems.

Micro LED is a thing of the future and there is no first monitor in sight.

What are you thoughts? How do you like your games?


Slamy
